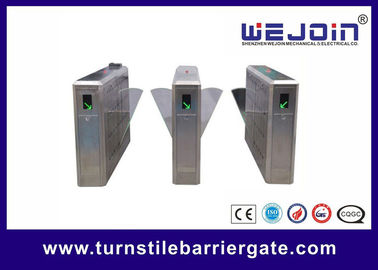

Pop Full-Automatic Flap Barrier Used In Subway And Bus Station With lighten Wing

Thông tin cơ bản
Place of Origin: SHENZHEN
Hàng hiệu: WEJOIN
Chứng nhận: CE,ISO,SGS
Model Number: WJTY202
Minimum Order Quantity: 1 pair
Packaging Details: Wooden
Payment Terms: T/T
Thông tin chi tiết
Vật liệu nhà ở: Nhà ở không gỉ Vôn: AC110V, AC220V
Chỉ đạo: Bi-direction
Điểm nổi bật:

security turnstiles

,

half height turnstile


Mô tả sản phẩm

Quick Introduction:



This flap barrier gate is the combination of machinery, electronic, CPU control and variety of personal

authentication identification technology.It can be compatible with IC card, ID card, code bar, and fingerprint

identification unit.WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high

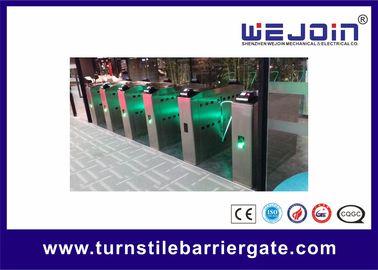

 technology. It has application in high class communities, intelligent buildings, hotels, subway stations and so on .



Specifications



Cabinet material

cold rolled steel & aluminum alloy

Power supply

AC220V±15%, AC110V±15%  50/60Hz

Motor voltage

DC24V (brush motor)

Access device input voltage

dry contact

Max flow rate

30~40 people per minute

Flap opening/closing time

0.5s ~ 1s

reset time when power on

2s

protection grade

IP32

working environment

outdoors (with shelter) and indoors.

working temperature

-25°C ~ +50°C







Functions and Features

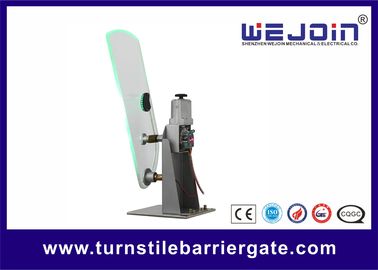

1. The design is of integration of machinery and electronic structure, with special drive style and reliable

    machinery auto locking solution, precise worm gear, and cabinet composite structure.

2. Malfunction self-detection. Which is easy for operation and maintenance.

3. Operational mode can be set up through the built-in menu on the control board.

4. Flap auto reversing when meeting exterior force.

5. Audible and visual alarm in case of unauthorized access.

6. Auti-collision function, the flap will stay close if not receiving the open signal.

7. Flap work synchronously.

8.Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order

 and the auto-reset time is adjustable.

9. Flaps open when power off, and auto-close when power on.
