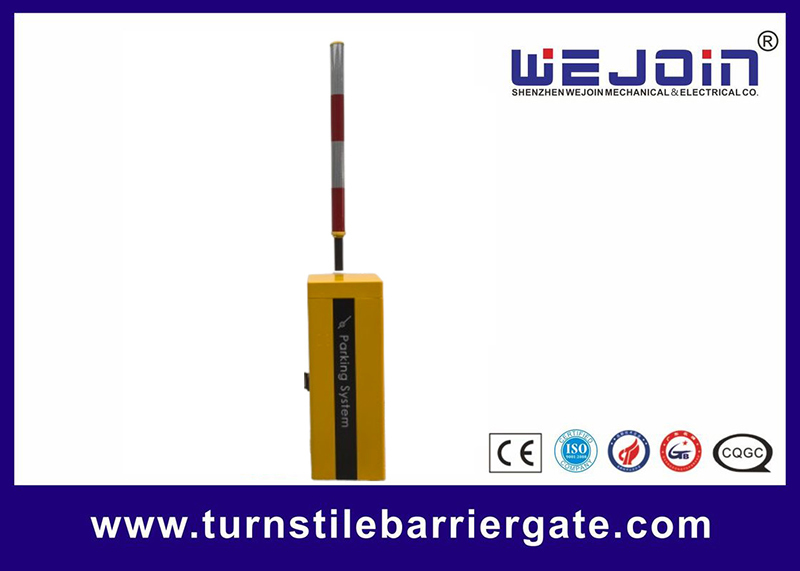

100% Duty Cycle Automatic Boom Barrier Gate DC24V Brushless Motor
Boom Barrier Basic Features:
1. This product is motor-driven, with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times or more, spring life of 1 million times.
2. The barrier gate comes standard with the rebound function, when the boom is blocked in the process of falling, it will rebound automatically.
3. Support external radar, ground sensor, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 off-line connection.
5. DC24V power supply is optional.
|
Model |
WJCB05 |
| Running Speed (Seconds: S) | 0.6~1.5S |
| Boom Type | Round Carbon Fiber Boom |
| Max Boom Length (Meters: M) | 3~4M |
| Cabinet Dimension (W*D*H) | 335*285*976MM |
| Power Supply Input Voltage | AC100~265V |
| Control Board Input Voltage | DC24V±10%, 10A |
| Motor Voltage | DC24V |
| Enclosure Rating | IP54 |
Common Malfunctions and Solutions
Malfunction Phenomenon:The opening speed is fast at the first power-on
Possible Causes :The power-on self-learning speed of P-13 is too fast.
Solution:Reduce 1-XX and 2-XX of P-13.
Malfunction Phenomenon:When manually finding the limit, the barrier can’t open or close to limit position, and the buzzer alarms
Possible Causes :The power-on self-learning speed of P-13 is too slow.
Solution:Increase 1-XX and 2-XX of P-13, and try again.
