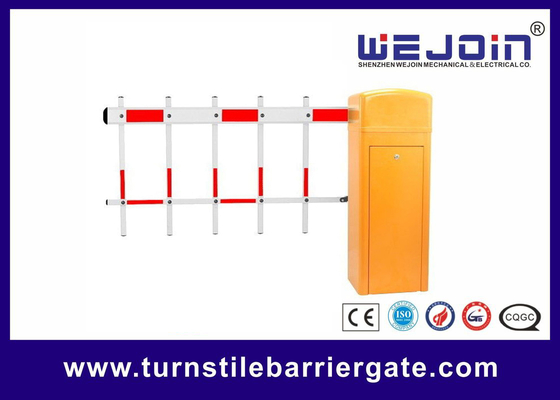

100-265V AC High-Grade Residential Area Access Control 4.5m Fence Arm Barrier Gate
Parking Barrier Gate Technical Data
Model: WJDZ04VF (speed 1.5 - 6s adjustable)
Running Speed: 1.5 - 6s,
Boom-Type: Straight, 90° Folding, 180° Folding, 2 Fence, 3 Fence
Max Boom Length: 3 - 6m, 5m, 4m, 4.5m, 4m
Housing Dimension: 336*325*1030MM, 335*285*920MM
Input Voltage: AC100 - 265V
Frequency: 50/60HZ
Motor Voltage: DC24V
Enclosure Rating: IP54
Working Temperature: -30℃ ~ +70℃
MTBF: 4000000 times
Traffic Flow Application: 3000 times/24 hours
Max Motor Power: 180W
Max Motor Speed: 500r/min
Max Torque: 260N.m
|
Boom Type |
Boom Length (Meters: M) |
Spring Diameter Φ (mm) |
Quantity of Springs (pieces) |
|
Straight Boom without Rubber
|
6≥L≥5.8 |
3.8 |
5 |
|
5.7≥L＞5 |
3.8 |
4 |
|
|
5≥L≥3.8 |
3.8 |
3 |
|
|
3.7≥L≥2.8 |
3.8 |
2 |
|
|
Straight Boom with Rubber
|
6≥L≥5.5 |
3.8 |
5 |
|
5.4≥L≥4.8 |
3.8 |
4 |
|
|
4.7≥L≥3.8 |
3.8 |
3 |
|
|
3.7≥L≥2.8 |
3.8 |
2 |
Warranty and Service Items
1. Free service is offered for component parts in one year warranty time. (not includes the barrier boom or remote)
2. Lifetime service with charge accordingly.
3. Technical questions are supported.
4. The below items and situations are not included in the range of free service:
4.1. The user does not follow the instruction and cause any damage of the product.
4.2. The power supply is not stable, over the range of permitted voltage or not accordant to safety electric using standard.
4.3. The user installs or uses the product in wrong methods, cause damage to the appearance of product.
4.4. Natural disaster causes damage to the product.
4.5. Warranty time is over.
4.6. Service items are out of our promises.
Fence boom installation
Step 1. Fix the boom holder press board on boom with 2pcs of M12*70mm hexagon screw.
Step 2. Press the board by hand, then lift up the boom vertically and install it on the boom holder. Install the flat washer, spring washer, and M12 nut on the screw in turn, and fix the screw with a wrench.
Step 3. Fix the bearing of the connecting unit to the cone axis on barrier with screw.
Step 4. Fix the bottom fence to the connecting unit, then release the 2pcs screw of the unit and adjust them to make the fence be perpendicular to the ground.
