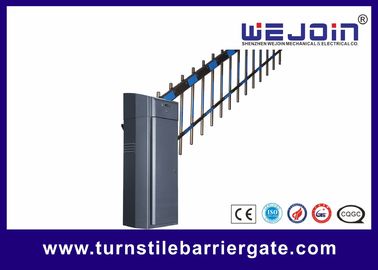

10 Million Operating Times Commerrcial Car Barrier Gate Vehicle Barrier Gates with Fence Boom

1 bộ
MOQ
Có thể đàm phán
giá bán
10 Million Operating Times Commerrcial Car Barrier Gate Vehicle Barrier Gates with Fence Boom
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Màu nhà ở: Vàng, Sliver, Onyx đen, vàng đậm, Jacinth
Loại bùng nổ: Hàng rào bùng nổ
Tùy chọn bùng nổ: Sự bùng nổ lớn, bùng nổ swing, bùng nổ hàng rào, bùng nổ vuông, bùng nổ rèn
Phụ kiện tùy chọn: Máy dò vòng, photocell hồng ngoại, bộ ngắt mạch, hỗ trợ cánh tay Adujstable, sóng báo chí, cao su ch
Làm nổi bật:

commercial car barrier gate with fence

,

vehicle barrier gates 10 million operations

,

parking barrier gate boom warranty

Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: WEJOIN
Chứng nhận: CE ISO SGS
Số mô hình: WJCB101
Thanh toán
chi tiết đóng gói: Thùng carton
Thời gian giao hàng: 12 ngày làm việc sau khi thanh toán nhận được
Điều khoản thanh toán: T/T, Liên minh phương Tây
Khả năng cung cấp: 10000 bộ/tháng
Mô tả sản phẩm

10 Million Operating Times Commerrcial Car Barrier Gate Vehicle Barrier Gates with Fence Boom


Independent designed and developed by WEJOIN,commercial variable frequency barrier has functions as following:

1. DC frequency conversion control motor drive, with a rod drive mechanism, balance spring, stable and reliable operation, the motor life of up to 6 million times or more.
2. The whole series is equipped with standard rebound function, when the boom is blocked in the process of falling, it will automatically rebound.
3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 off-line connection.
5. Optional Bluetooth module, convenient debugging of barrier gates through small programs.
6. Large LCD screen display, English visual menu, easy function selection and debugging.
7. Interchangeable left and right direction.


Barrier Gate Parameter

1. Working Temperature (Motor): -35℃~ + 70℃
2. Power Supply Input Voltage: AC100~265V
3. Controller Input Voltage: DC24V±10%, 10A
4. Motor Power: 180W MAX
5. Relative Humidity: 30%~80%, No condensation
6. Distance of Remote Control: L≥30M
7. Running Speed:CB01VF-H 1~4 S;CB01VF-I 2~6 S
8. Enclosure Rating:IP54
9. MTBF:6,000,000 times
10. Max Boom Length:8M


Auto-open when power off

Sub-menu

Defaults

Range

Remarks

Low voltage actuation time

OFF

0-5000, 0 is OFF

The time when the voltage is lower than the set threshold and continues to exceed the threshold, it will turn on automatically.

Unit: millisecond.

Low voltage threshold

21

15-23

The operating voltage is lower than the threshold; unit: V.


Buffer Time for Boom from Closing to Opening

Pressing open button in the process of closing, this parameter is used to set the buffer time of the controller from receiving the command to starting to open.



Buffer Time of Barrier Gate Stopping

Pressing stop button in the process of barrier gate opening or closing, in order to make the barrier stop smoothly, set a buffer time. This time is the time from the barrier gate receiving the stop command to stopping completely.
