Automatic Barrier Gate with 90 Degree Folding Boom and Variable Frequency Motor for Smooth 6M Boom Operation

50 bộ
MOQ
Có thể đàm phán
Giá
Automatic Barrier Gate with 90 Degree Folding Boom and Variable Frequency Motor for Smooth 6M Boom Operation
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Loại bùng nổ: Bùng nổ thẳng / Bùng nổ lũ lụt
Điện áp: AC 110V-265V
Chiều dài bùng nổ: Tối đa 6m (tùy chỉnh)
Bảo hành: 2 năm
Màu nhà ở: Vàng
Ứng dụng: Bãi đậu xe
Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: WEJOIN
Chứng nhận: CE ISO
Số mô hình: CB01VF-I
Thanh toán
chi tiết đóng gói: thùng carton
Thời gian giao hàng: 15 ngày làm việc sau khi thanh toán nhận được
Điều khoản thanh toán: T/T
Khả năng cung cấp: 10000 BỘ/THÁNG
Mô tả sản phẩm
Automatic Barrier Gate with 90° Folding Boom and Variable Frequency Motor
Automatic barrier gate equipped with 6m straight boom and variable frequency motor providing smooth barrier operation.
Boom Barrier Gate Functions & Features
Reliable DC Variable Frequency Drive System
The boom barrier gate is powered by a DC variable frequency motor combined with a heavy-duty connecting rod transmission mechanism and a balancing spring system. This configuration provides smooth and stable boom movement while minimizing mechanical wear during continuous operation.
Key Benefits
  • DC variable frequency motor for precise speed control
  • Heavy-duty connecting rod transmission for reliable operation
  • Soft start and soft stop to reduce impact and vibration
  • Motor service life up to 6 million cycles
  • Balance spring rated for up to 500,000 cycles
The optimized drive system is suitable for high-frequency vehicle access applications and continuous-duty operation.
Intelligent Obstacle Detection for Enhanced Safety
To improve operational safety, the barrier gate incorporates an automatic reversing function. If the boom encounters an obstacle while closing, it immediately reverses direction to help prevent damage to vehicles and ensure safe passage for pedestrians.
Safety Advantages
  • Fast obstacle response
  • Automatic reversing during boom descent
  • Reduced risk of accidental collisions
  • Improved protection for vehicles and pedestrians
Comprehensive Safety Device Integration
The controller is designed to support multiple external safety accessories for enhanced anti-crash protection.
Compatible Safety Devices
  • Radar detectors
  • Loop detectors
  • Infrared photocells
A built-in DC12V power output is available to directly supply external devices such as radar sensors, simplifying wiring and reducing installation complexity.
Flexible Communication and System Integration
The barrier gate supports multiple communication methods for integration with intelligent parking and access control systems.
Communication Features
  • Standard RS485 communication interface
  • Relay signal output for external controllers
  • Compatible with parking management systems
  • Supports license plate recognition (LPR) systems
In addition, the RS485 offline connection function allows multiple barrier gates to operate synchronously without a central controller, making it suitable for dual-lane and multi-lane applications.
Optional Bluetooth Configuration and Diagnostics
For easier commissioning and maintenance, an optional Bluetooth module is available. Users can wirelessly connect the barrier gate to a smartphone or tablet and perform parameter settings and diagnostics through a dedicated mobile app or mini-program.
Main Functions
  • Wireless parameter configuration
  • Real-time debugging
  • Convenient maintenance
  • Faster installation and commissioning
User-Friendly LCD Interface
The barrier gate is equipped with a large LCD display featuring an intuitive English visual menu. The interface allows operators and installers to quickly configure functions, adjust parameters, and perform troubleshooting, improving commissioning efficiency and simplifying on-site maintenance.
Advantages
  • Easy operation
  • Visual menu navigation
  • Convenient parameter settings
  • Simplified troubleshooting and maintenance
Barrier Gate Controller Interface
Wire Control Interface
This interface is available for parking system, also available for external controller to control barrier gate.
  • UP: Short circuit "UP" and "GND"
  • Down: Short circuit "Down" and "GND"
  • Stop: Short circuit "Stop" and "GND"
Anti-smashing Interface
Infrared Photocell: boom will lift up when short circuiting "Infrared photocell interface" and "GND" during boom down.
Loop Detector: boom will lift up when short circuiting "loop detector interface" and "GND" during boom down; in up limit position, boom will fall down automatically after these two interfaces disconnected.
RS485 Communication Interface
It is used for controlling the barrier gate or checking the status of the barrier gate by computer or system; also used for online controlling the paired barrier gates synchronously.
Vehicle Barrier Gate Technical Data
Model WJCB01VF-H WJCB01VF-I
Running Speed 1-4S 2-6S
Boom Type Straight Straight
Max Boom Length 4.5M 4M~8M
Input Voltage AC100-265V
Frequency 50/60HZ
Motor Voltage DC24V
Enclosure Rating IP54
Working Temperature -30°C ~ +70°C
MTBF 6000000 times
Traffic Flow Application 24 hours uninterrupted operation
Max Motor Power 240W 180W
Max Motor Speed 500r/min 360r/min
Max Torque 280N.m 320N.m

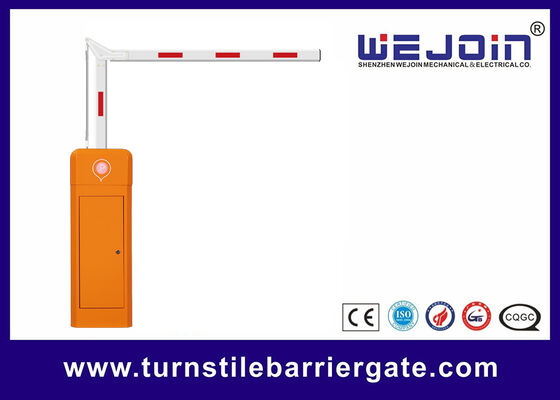

Automatic barrier gate with folding boom in operation
